Installation Templates

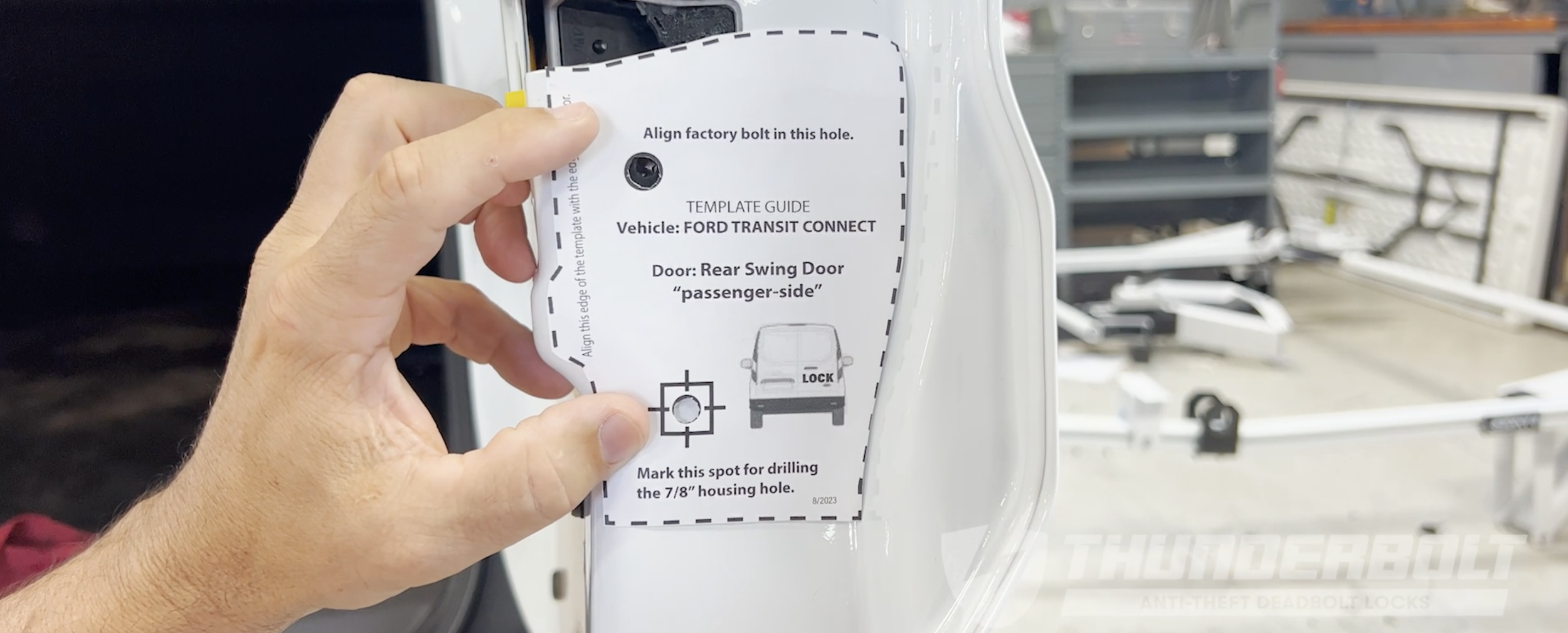

The templates are provided as a guide to help with the installation process. Once the template is printed, measure the 2-inch ruler on the printed page to ensure it is in the correct proportion

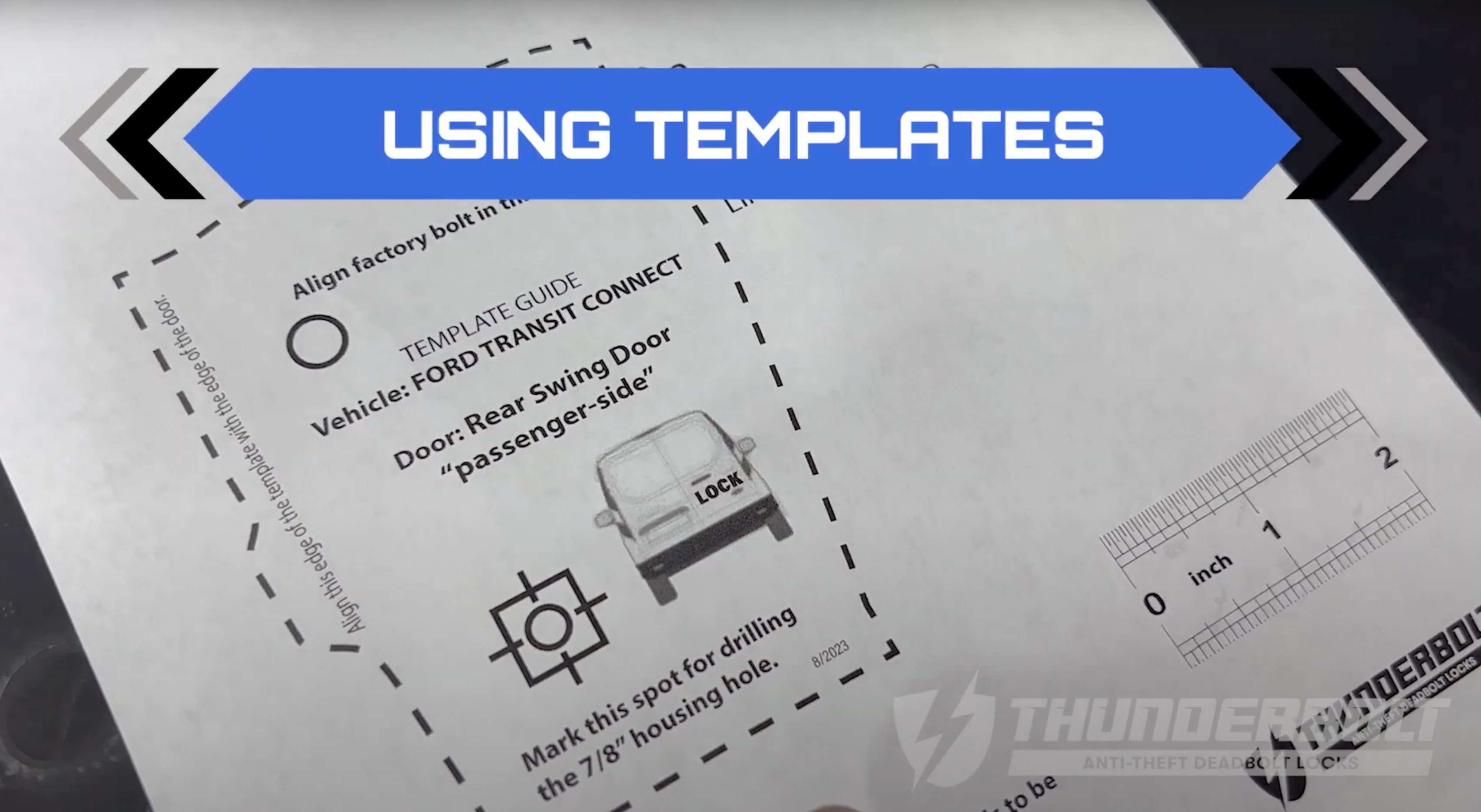

For more info: WATCH THE VIDEO here

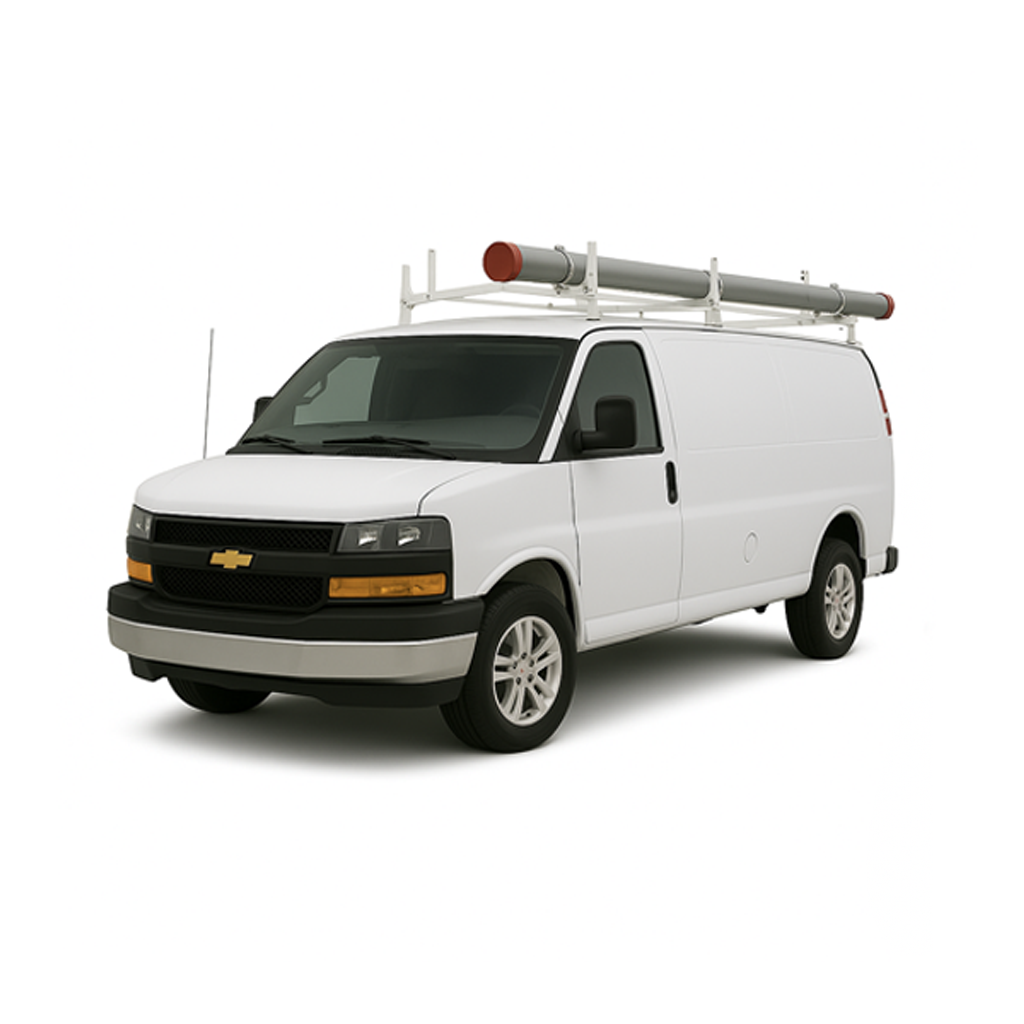

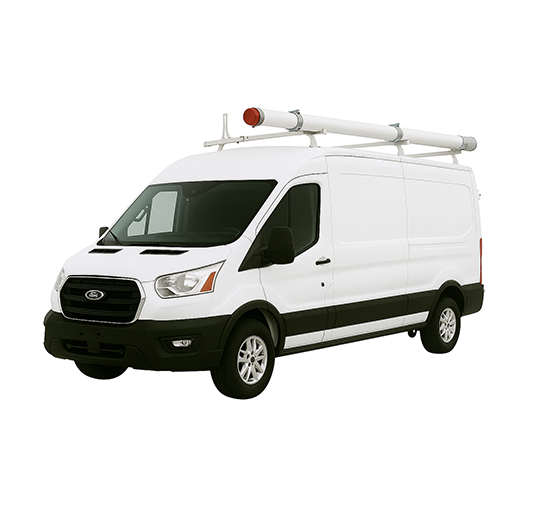

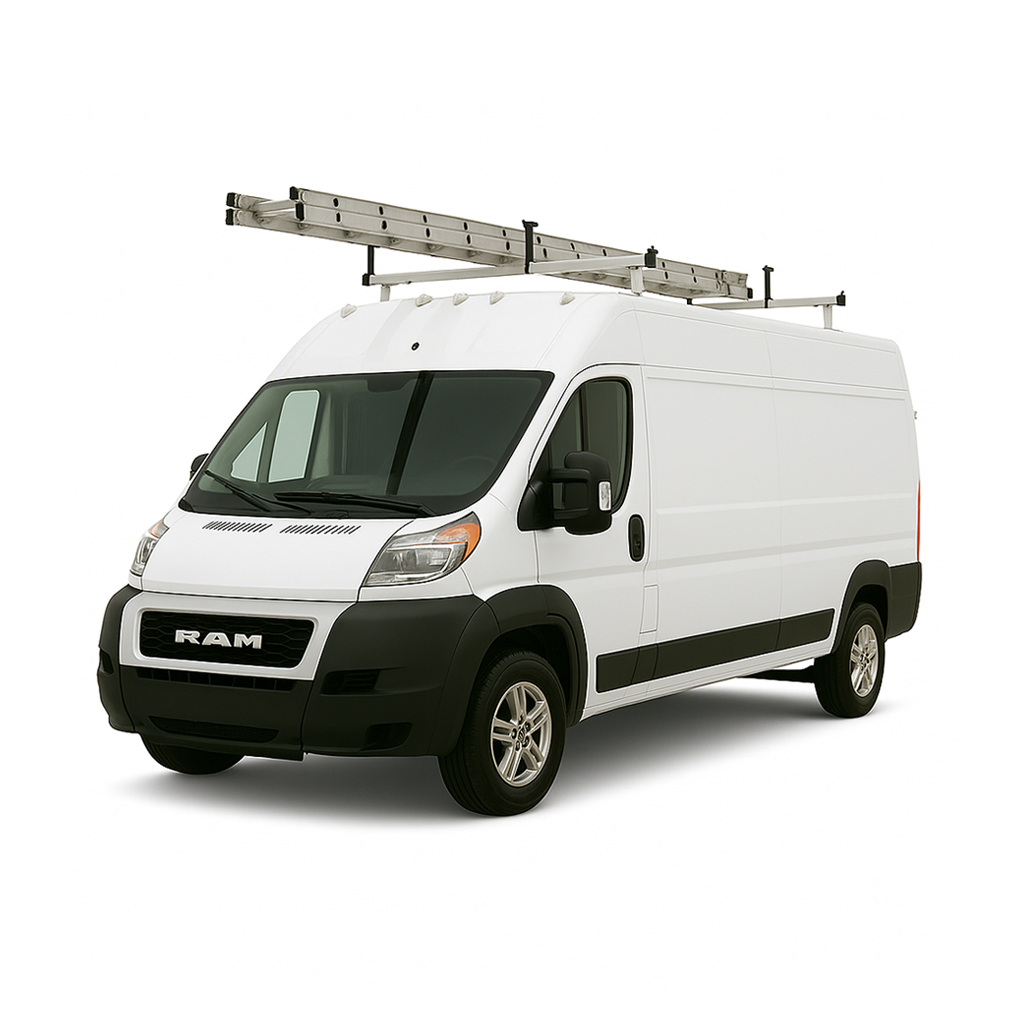

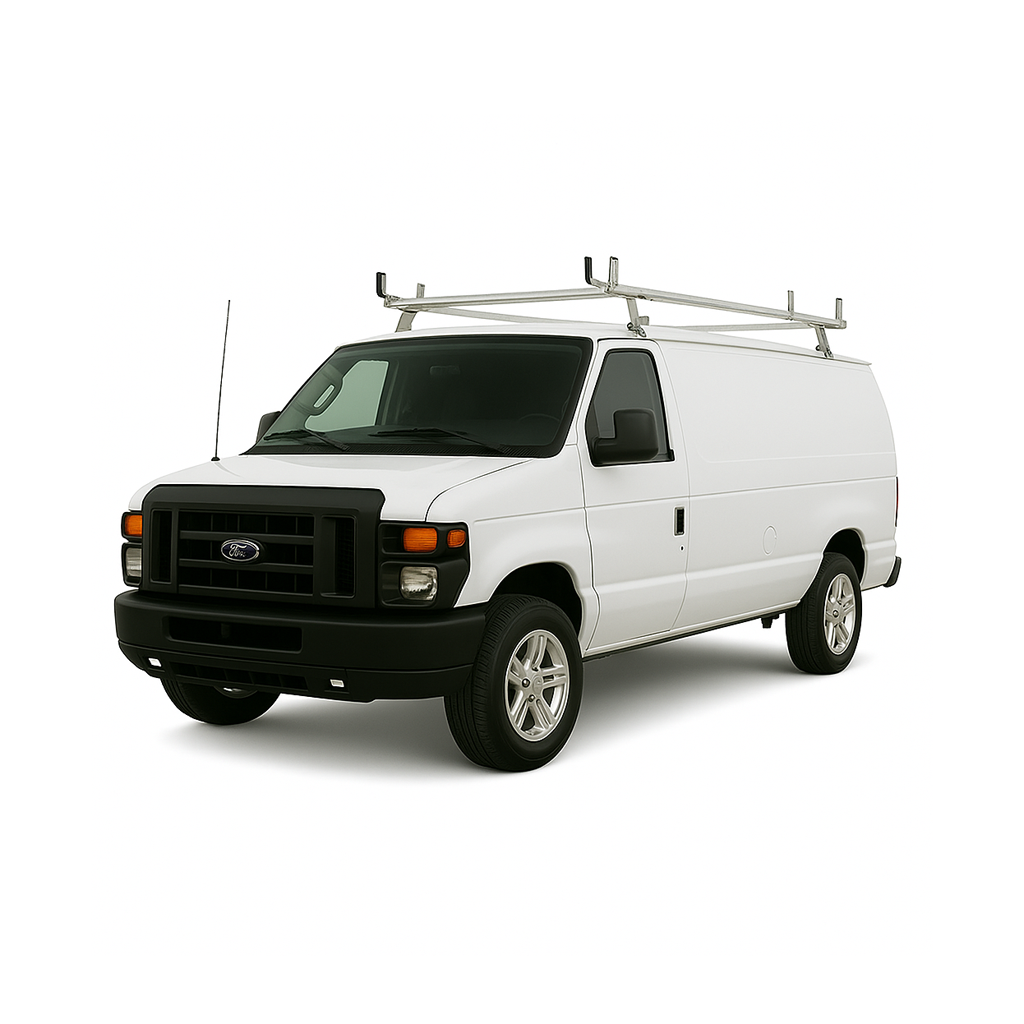

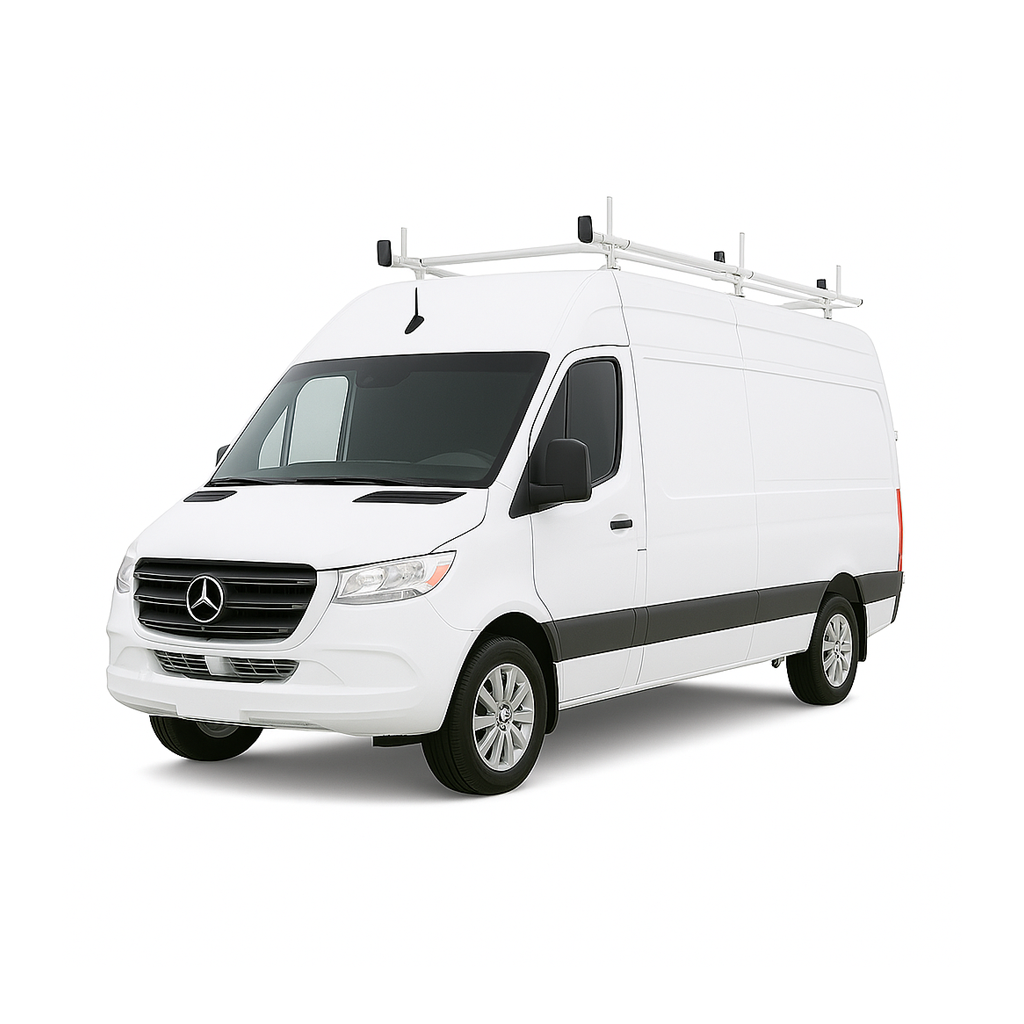

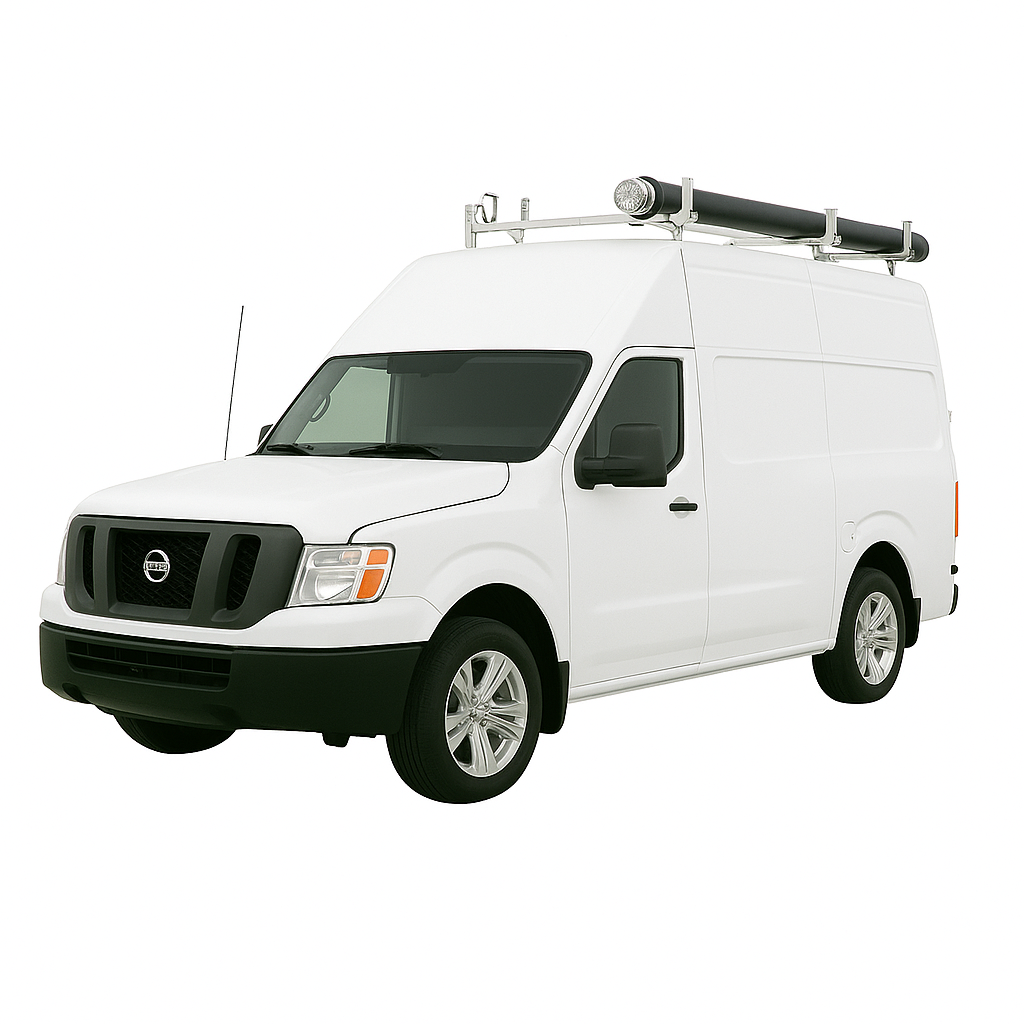

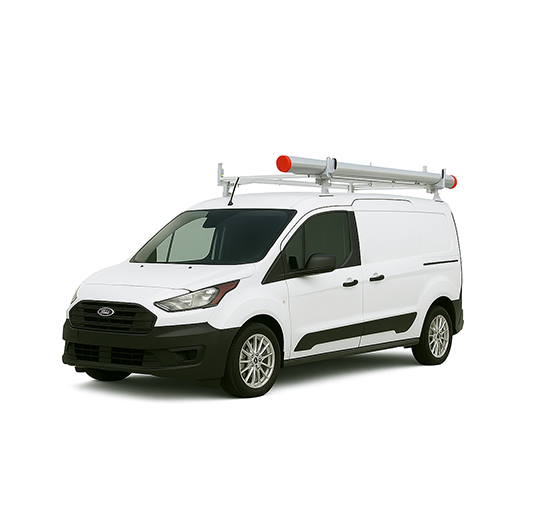

The templates were designed for a wide range of vehicles, primarily based on late-model vans. While these templates are a helpful starting point, they may not perfectly match your specific vehicle. However, the universal design of our locks means they can be installed in various locations on your vehicle, as long as the deadbolt can securely engage with the strike hole. We encourage you to review the provided photos of your specific van on our website. Be sure to measure twice and drill once, but only after checking that there are no obstructions behind the drilling location. Thunderbolt Locks, Inc. takes no responsibility for drilling holes in the wrong locations or unforeseen damage.
