RV Camper Vehicles
Thunderbolt Locks are compatible with most doors as long as you can either install the lock inside the door or surfave mount it. Below, select the number of doors you want to secure and either M1 or M2 locks to see the recommended equipment. M1 locks operate from your vehicle’s key fob, while M2 locks use a Thunderbolt key fob. Keep in mind some RV doors will need special brackets. Contact us for support.
Equipment Required for RV Doors
Option 1: One Door - M1 Lock (Controlled from your Key Fob)
(1) M1 Locks (side doors)
Order this product kit: CLICK HERE
Note: It's possible that your vehicle may require Lock Conversion Relays. (see LCR video below)
Option 2: Three Doors - M1 Locks (Controlled from your Key Fob)
(2) M1+ Locks (Cab Doors)
(1) M1 Locks (Side Door)
(1) Keyed Release (Driver Door)
Order this product kit: CLICK HERE
Note: It's possible that your vehicle may require Lock Conversion Relays. (see LCR video below)
Option 3: One Door - M2 Lock (Controlled from Thunderbolt® Key Fob)
(1) M2 Locks (Side Door)
Note: Lock Conversion Relays are not required when using M2 locks.
Option 4: Three Doors - M2 Locks (Controlled from Thunderbolt® Key Fob)
(3) M2 Locks (All Four Doors)
(1) Keyed Release (Driver Door)
(1) Distribution Block (not required but highly recommended)
Note: Lock Conversion Relays are never required when using M2 locks.

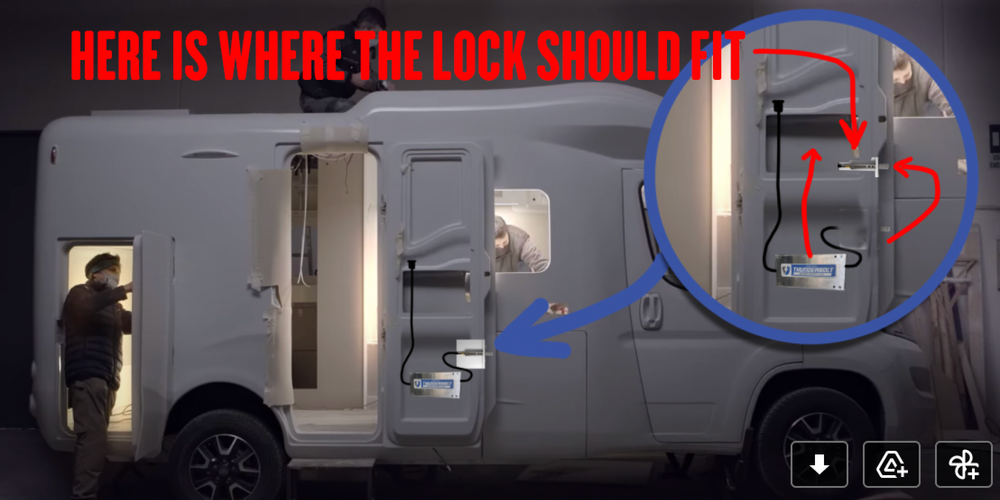

Installation Examples
Please note that the photos are for example purposes only. Installation methods may vary due to the different van models or years. There is no specific location where the lock must be installed, as it offers flexibility and a universal fit. Some Ford vans are
Side Door
Side Door
Housing and Bolt

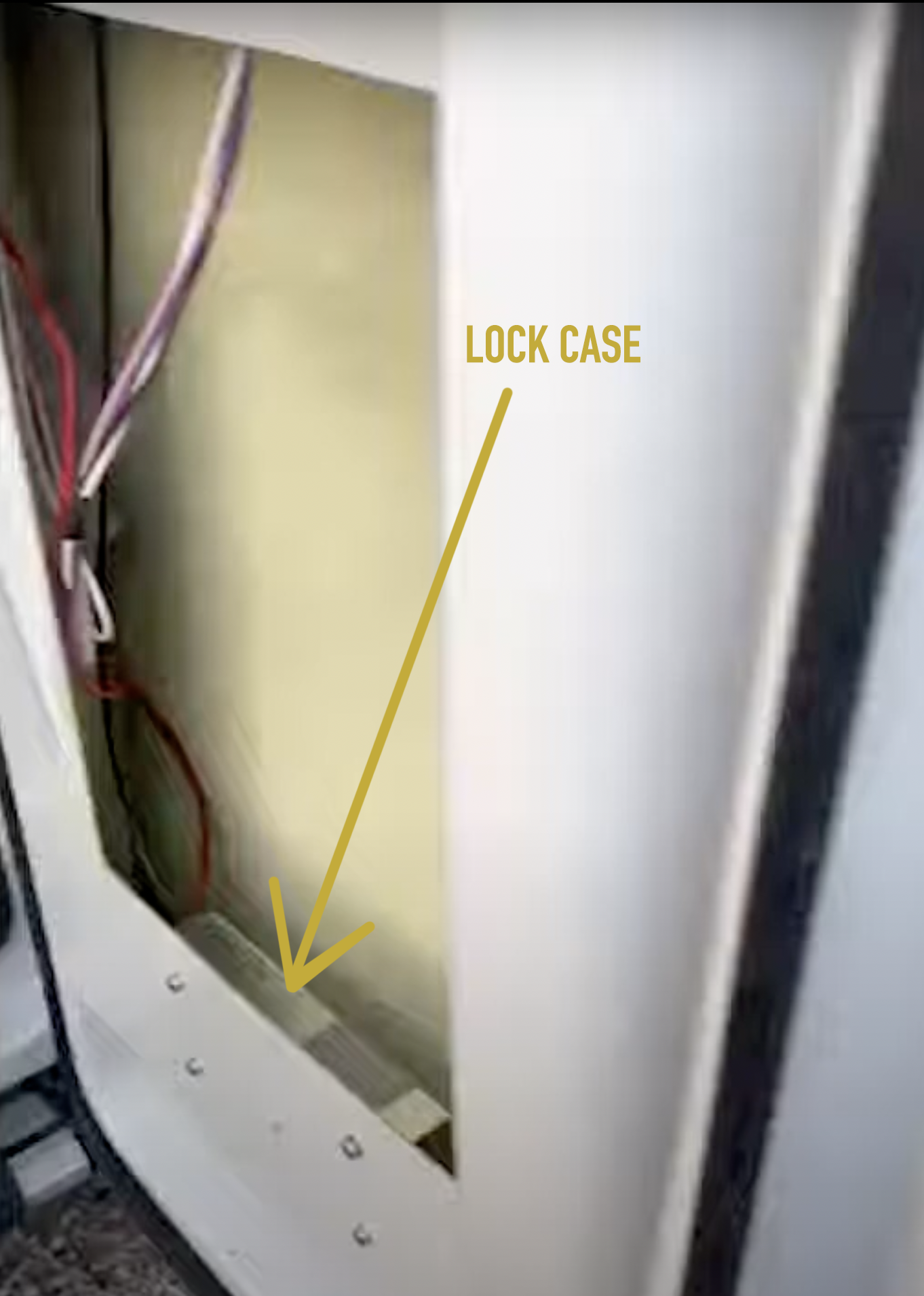

Case in Door
Front Cab Doors
Lock Case in Door
Housing in Driver-door
Housing with Bolt
Strike Plate in B-Pillar
Side Sliding Door
Housing with Bolt
Strike Plate

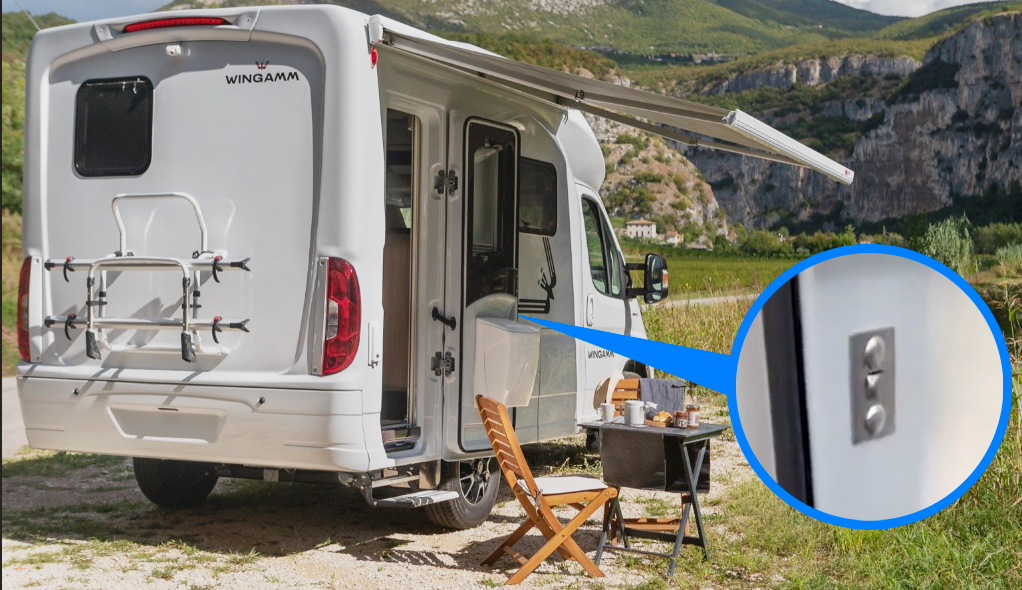

Contact Switch (Pins)
Contact Switch (Receiver)
Videos
General Installation
Side Door Example
Lock Conversion Relays (LCRs)
Many vans are at risk of theft through a simple method: a thief breaks the front window, opens the door, and presses the unlock button to gain access to the cargo area. If your van is vulnerable to this tactic, Thunderbolt Locks offers a reliable solution with our Lock Conversion Relays. Once installed, these relays ensure that the unlock button in the cab only functions when the key is in the ignition, adding an extra layer of security to protect your valuable cargo. Watch the videos below to learn more.
LCR Videos
Testing Your Ford for LCRs
How the LCR Works
