ProMaster City
Thunderbolt Locks are compatible with ProMaster City model. Below, select the number of doors you want to secure and either M1 or M2 locks to see the recommended equipment. M1 locks operate from your vehicle’s key fob, while M2 locks use a Thunderbolt key fob.
ProMaster City Van Equipment Bundle
Option 1: Two Doors - M1 Locks (Controlled from ProMaster City Key Fob)
(2) M1 Locks (rear and side cargo doors)
(1) Strike Bracket
Order this product kit: CLICK HERE
Note: It's possible that your ProMaster City may require a Lock Conversion Relay. (see LCR video below)
Option 2: Three Doors - M1 Locks (Controlled from ProMaster City Key Fob)
(3) M1 Locks (rear and side cargo doors)
(1) Strike Bracket
Order this product kit: CLICK HERE
Note: It's possible that your ProMaster City may require a Lock Conversion Relay. (see LCR video below)
Option 3: Five Doors - M1 Locks (Controlled from ProMaster City Key Fob)
(2) M1+ Locks (Cab Doors)
(3) M1 Locks (Rear and Two Sliding doors)
(1) Strike Bracket (Rear Driver-side Door)
(1) Keyed Release (Driver Door)
Order this product bundle: CLICK HERE
Note: It's possible that your ProMaster City may require a Lock Conversion Relays. (see LCR video below)
Option 4: Two Doors - M2 Locks (Controlled from Thunderbolt® Key Fob)
(2) M2 Locks (Rear Door and one Sliding Door)
(1) Strike Bracket (Rear Driver-side Door)
(1) Contact Switch (Sliding Door)
Order this product bundle: CLICK HERE
(1) Distribution Block (not required, but strongly recommended to streamline wire management in bundled M2 configurations).
Note: Lock Conversion Relays are not required when using M2 locks.
Option 5: Three Doors - M2 Locks (Controlled from Thunderbolt® Key Fob)
(3) M2 Locks (The Rear Cargo and Two Sliding Doors)
(1) Strike Bracket (Rear Driver-side Door)
(2) Contact Switches (Sliding Doors)
(1) Keyed Release (Driver Door)
(1) Distribution Block (not required, but strongly recommended to streamline wire management in bundled M2 configurations).
Note: Lock Conversion Relays are never required when using M2 locks.
Option 6: Five Doors - M2 Locks (Controlled from Thunderbolt® Key Fob)
(5) M2 Locks (All Doors)
(1) Strike Bracket (Rear Driver-side Door)
(2) Contact Switches (Sliding Doors)
(1) Keyed Release (Driver Door)
Order this product bundle: CLICK HERE
(1) Distribution Block (not required, but strongly recommended to streamline wire management in bundled M2 configurations).
Note: Lock Conversion Relays are never required when using M2 locks.
Installation Examples
Please note that the photos are for example purposes only. Installation methods may vary due to the different van models or years. There is no specific location where the lock must be installed, as it offers flexibility and a universal fit.
Side Sliding Door

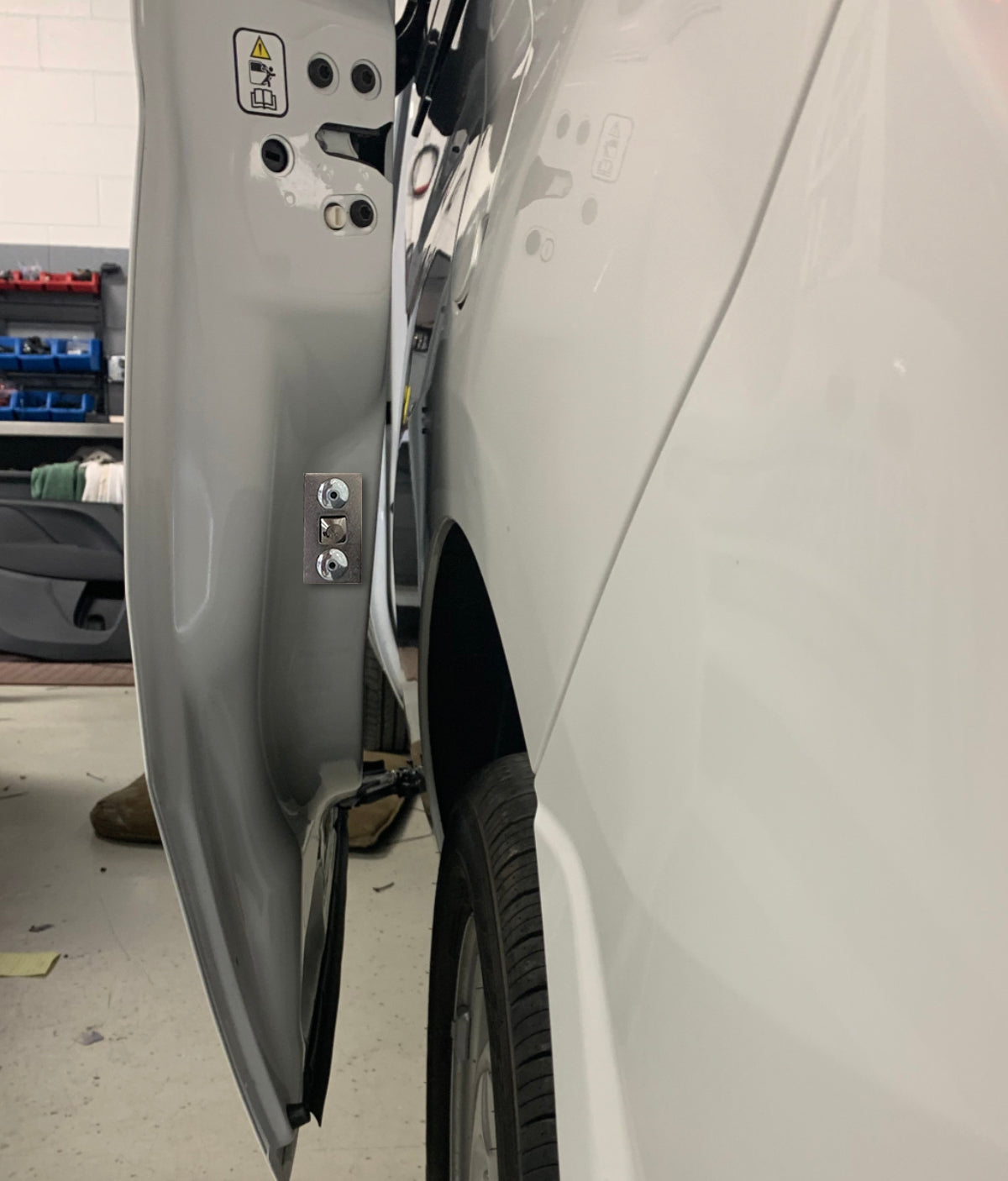

Housing with Bolt

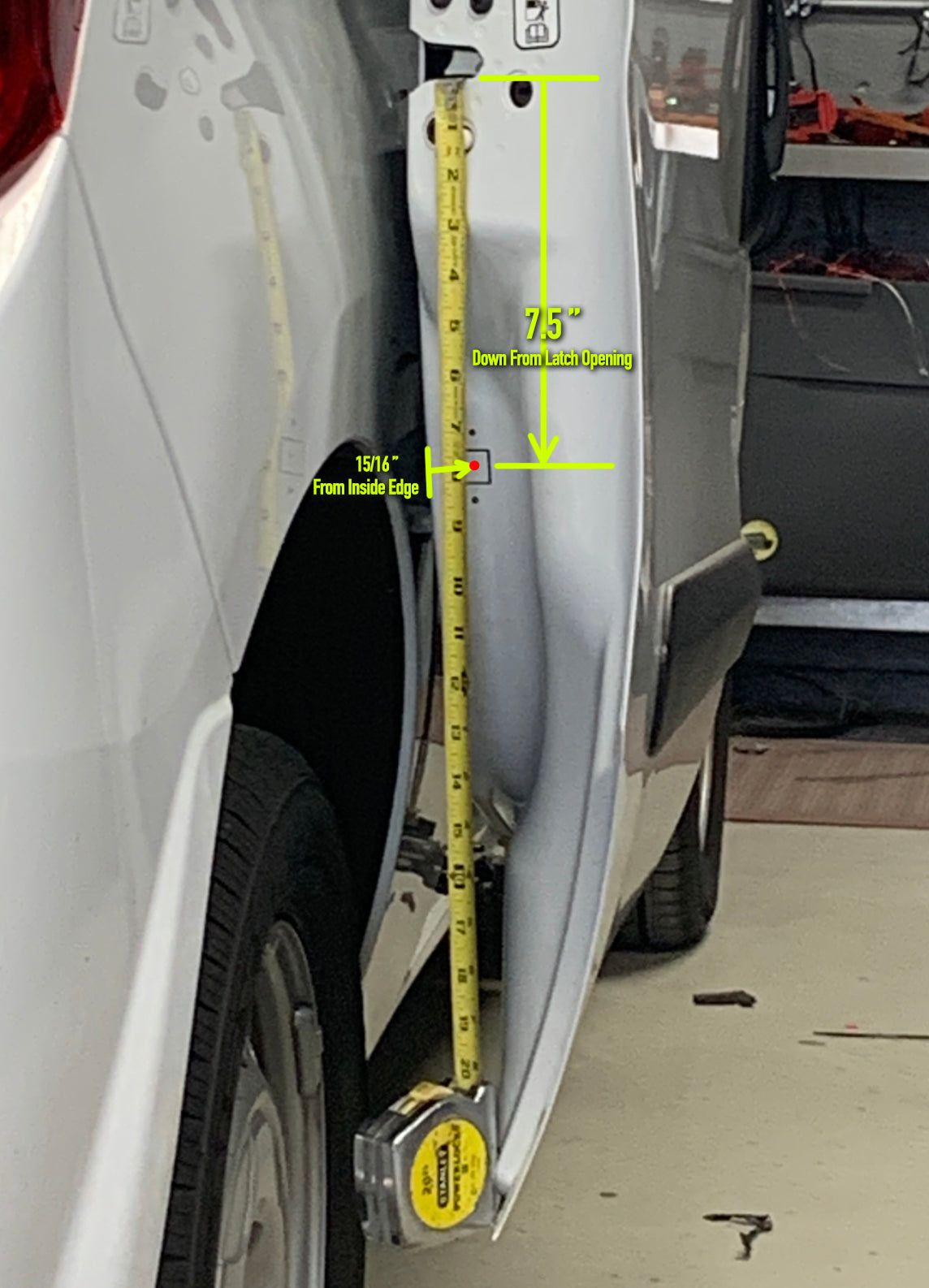

Side Door Measurements

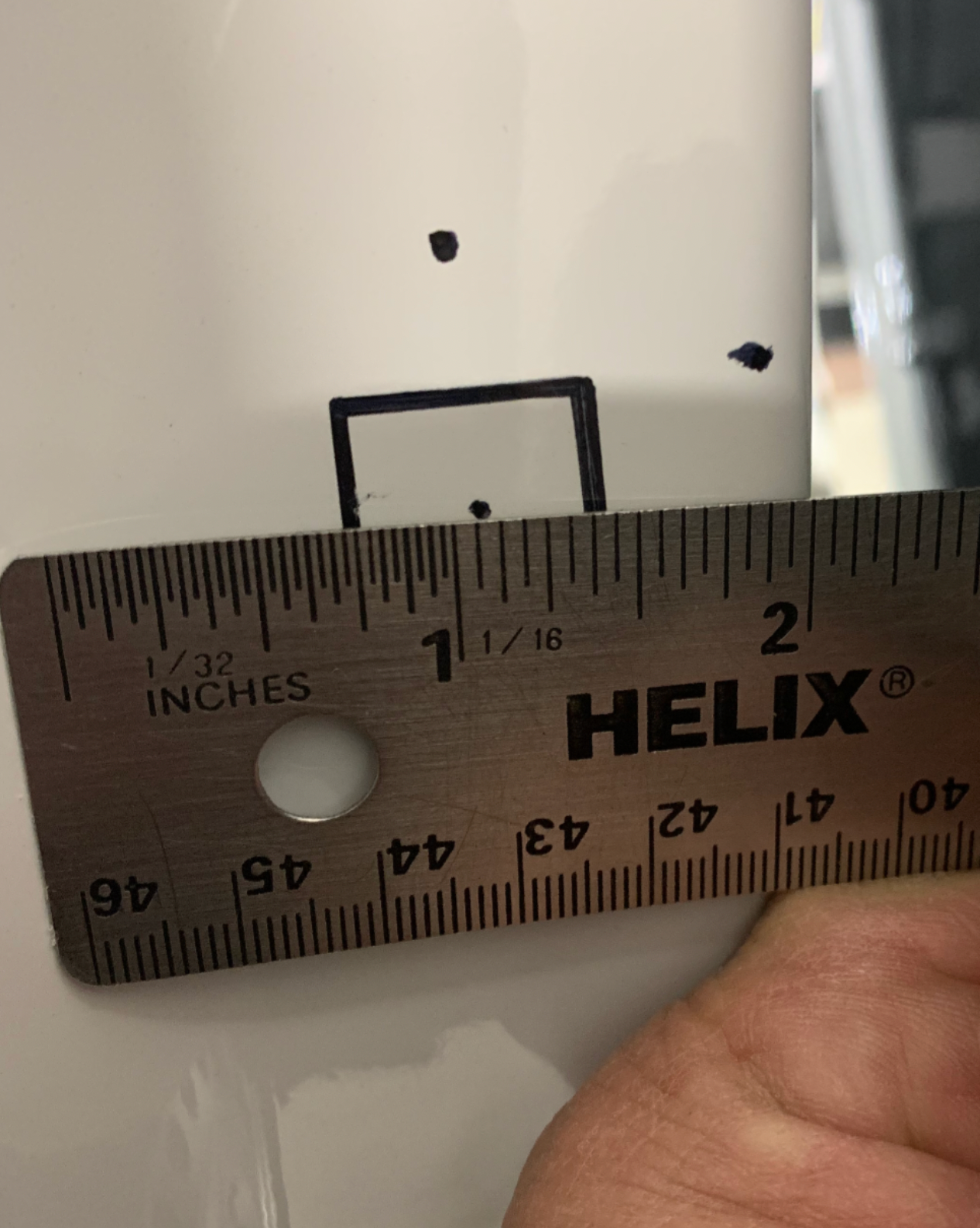

Side Door
Side Door
Videos
General Installation
Lock Conversion Relays (LCRs)
Many vans are at risk of theft through a simple method: a thief breaks the front window, opens the door, and presses the unlock button to gain access to the cargo area. If your van is vulnerable to this tactic, Thunderbolt Locks offers a reliable solution with our Lock Conversion Relays. Once installed, these relays ensure that the unlock button in the cab only functions when the key is in the ignition, adding an extra layer of security to protect your valuable cargo. Watch the videos below to learn more.
NOTE: We suggest ordering (2) LCR for your van which will get installed in the cab doors. However, first check to see if you can connect one at the BCM under the glove box. If you are able to connect one at the BCM you can return the unused LCR for a full refund.
LCR Videos
Testing Your RAM for LCRs
How the LCR Works
How to Install LCRs
