Mercedes Sprinter
Thunderbolt Locks are compatible with the Mercedes Sprinter models. Below, select the number of doors you want to secure and either M1 or M2 locks to see the recommended equipment. M1 locks operate from your vehicle’s key fob, while M2 locks use a Thunderbolt key fob.
Try our Product Wizard
Not sure which equipment is best for your van? Use our Product Wizard to find out!
Mercedes Sprinter Van Equipment Bundles
Option 1: Two Doors - M1 Locks (Controlled from Sprinter Key Fob)
(2) M1 Locks (rear and side cargo doors)
(1) Strike Bracket
Order this product kit: CLICK HERE
Option 2: Four Doors - M1 Locks (Controlled from Sprinter Key Fob)
(2) M1+ Locks (Cab Doors)
(2) M1 Locks Rear and Side Doors)
(1) Strike Bracket (Rear Driver-side Door)
(2) Isolation Relays (Cab Doors)
(1) Keyed Release (Driver Door)
Order this product kit: CLICK HERE
Option 3: Two Doors - M2 Locks (Controlled from Thunderbolt® Key Fob)
(2) M2 Locks (Side and Rear Cargo Doors)
(1) Strike Bracket (Read Driver-side Door)
(1) Contact Switch (Side Door)
Order this product bundle: CLICK HERE
(1) Distribution Block (not required, but strongly recommended to streamline wire management in bundled M2 configurations).
Option 4: Four Doors - M2 Locks (Controlled from Thunderbolt® Key Fob)
(4) M2 Locks (All Four Doors)
(1) Strike Bracket (Rear Driver-side Door)
(1) Contact Switch (Side Door)
(1) Keyed Release (Driver Door)
(1) Distribution Block (not required, but strongly recommended to streamline wire management in bundled M2 configurations).
Installation Examples
Please note that the photos are for example purposes only. Installation methods may vary due to the different van models or years. There is no specific location where the lock must be installed, as it offers flexibility and a universal fit.
Rear Door
Lock Case in Lower Opening

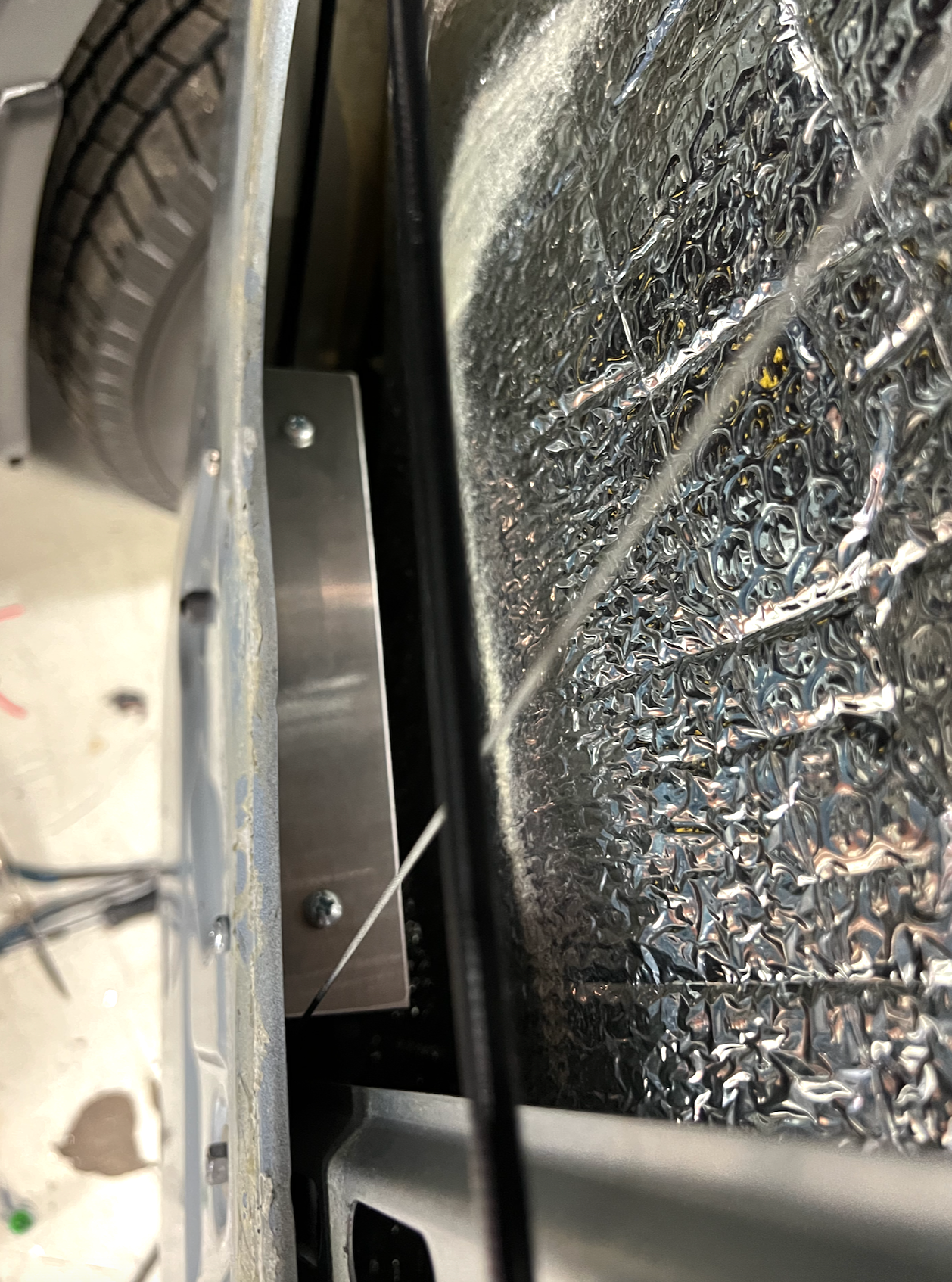

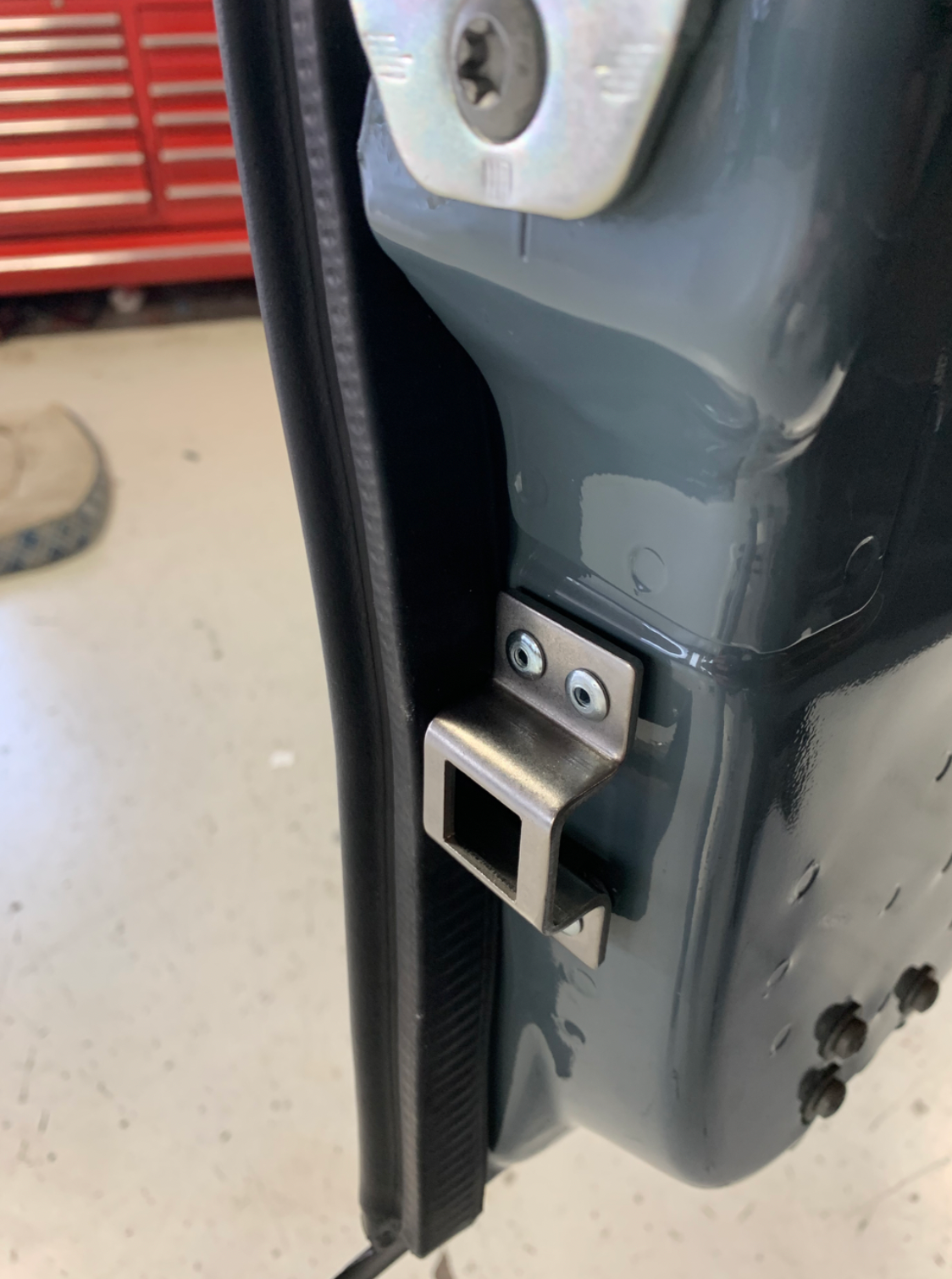

Strike Bracket
Housing/Bolt
Release Knob
Front Cab Doors
Lock Case in Door
Looking Down at Case
Housing with Bolt

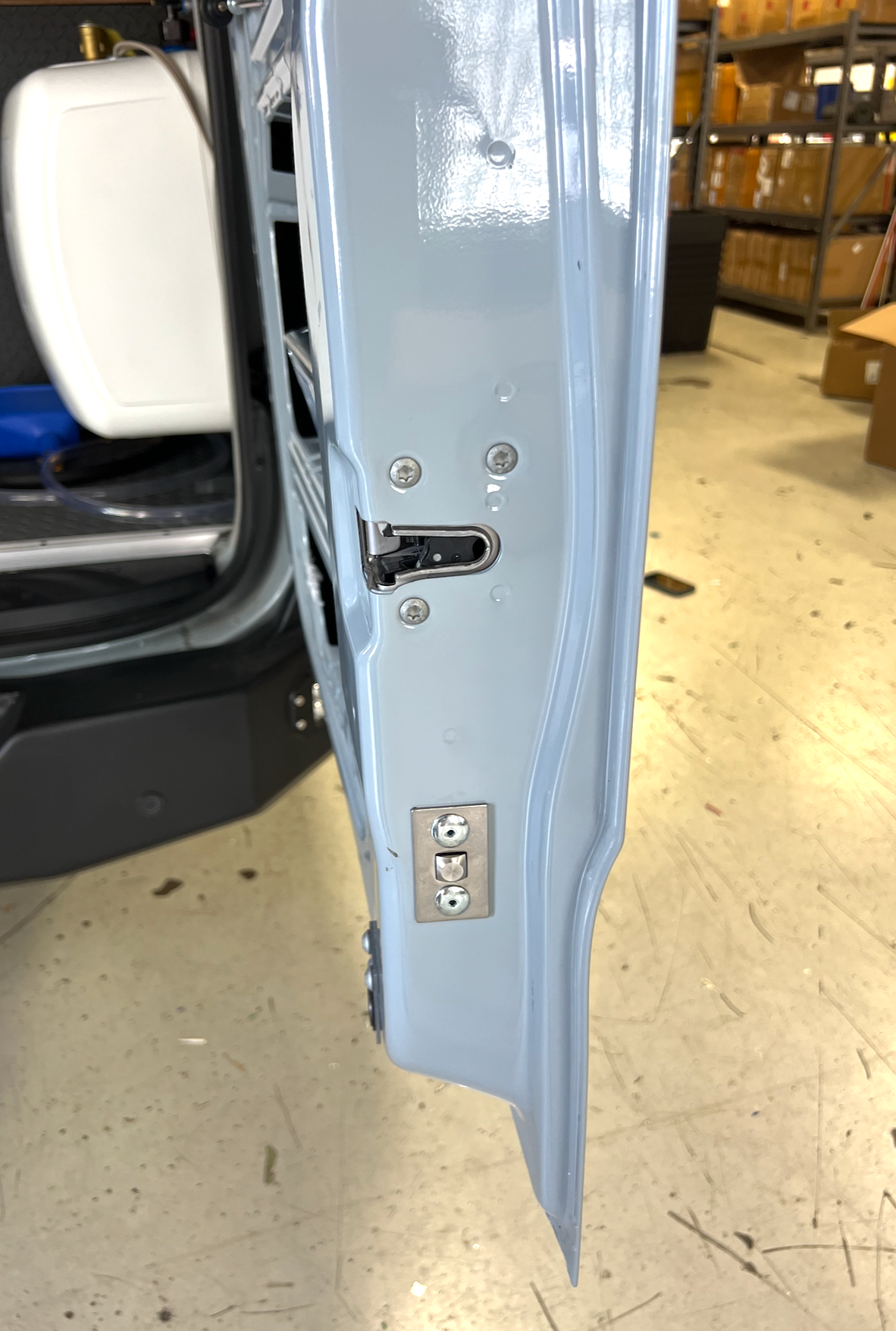

Strike Plate in B-Pillar

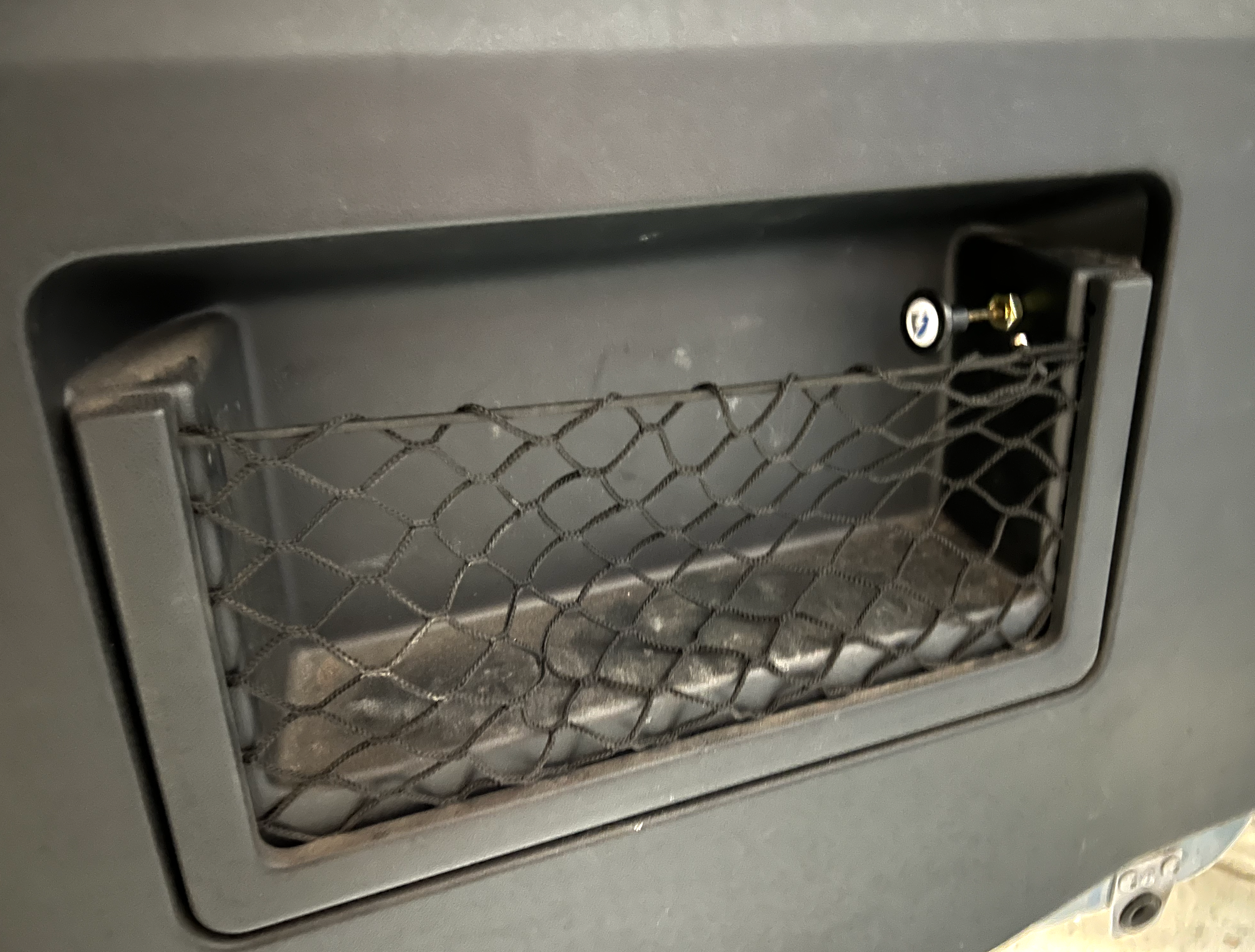

Manual Release Knob

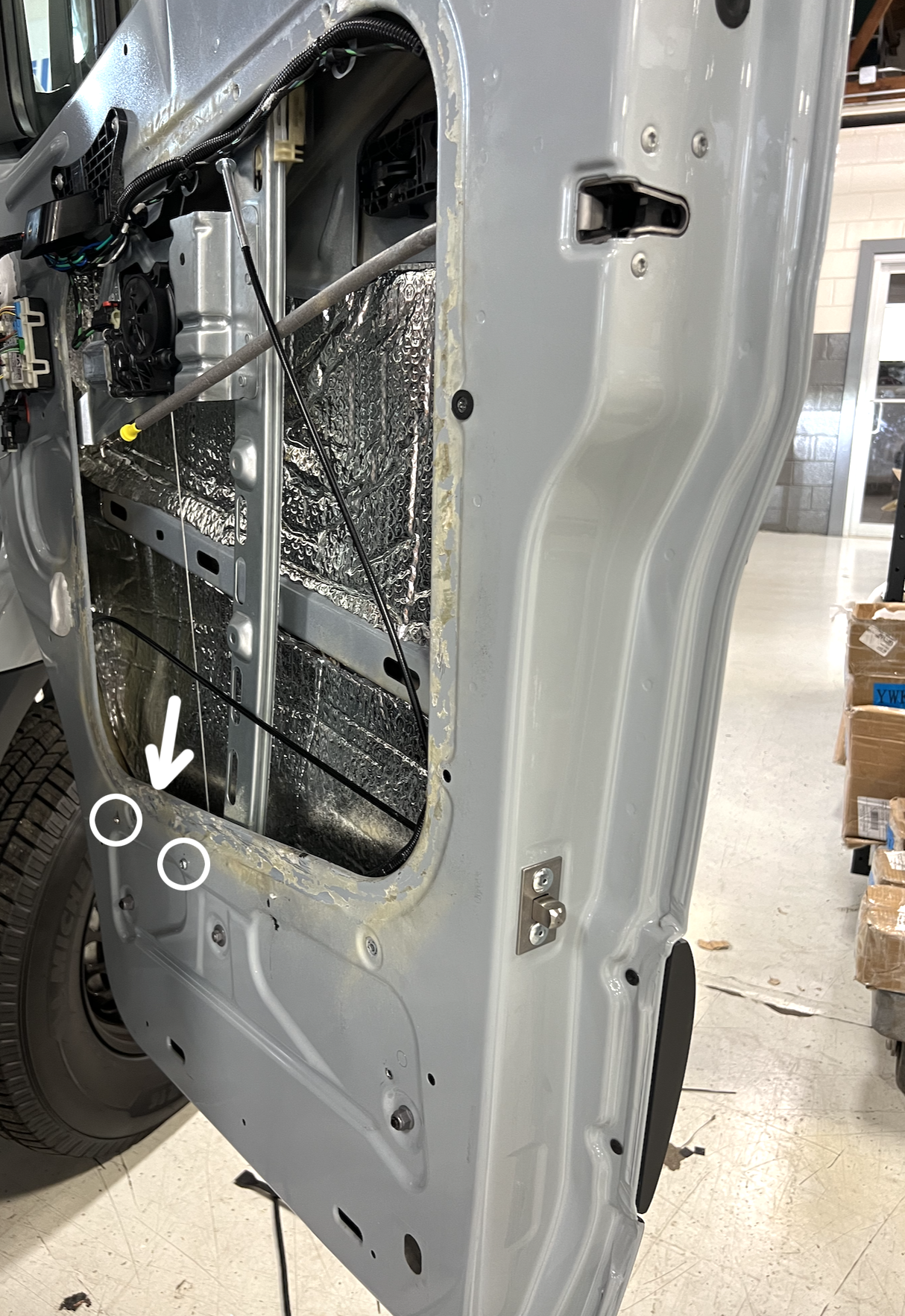

Drilling Holes to Mount Case

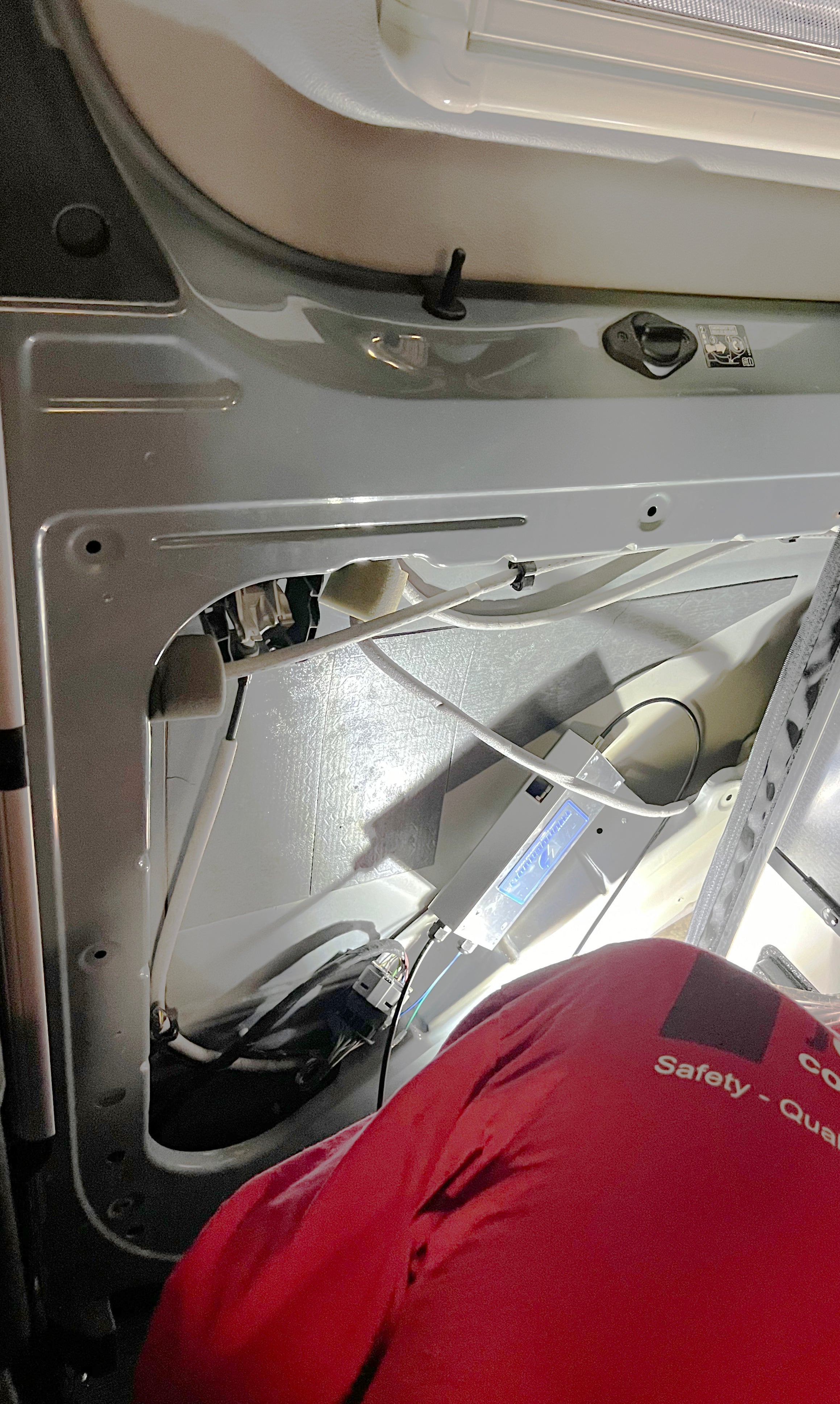

Side Sliding Door

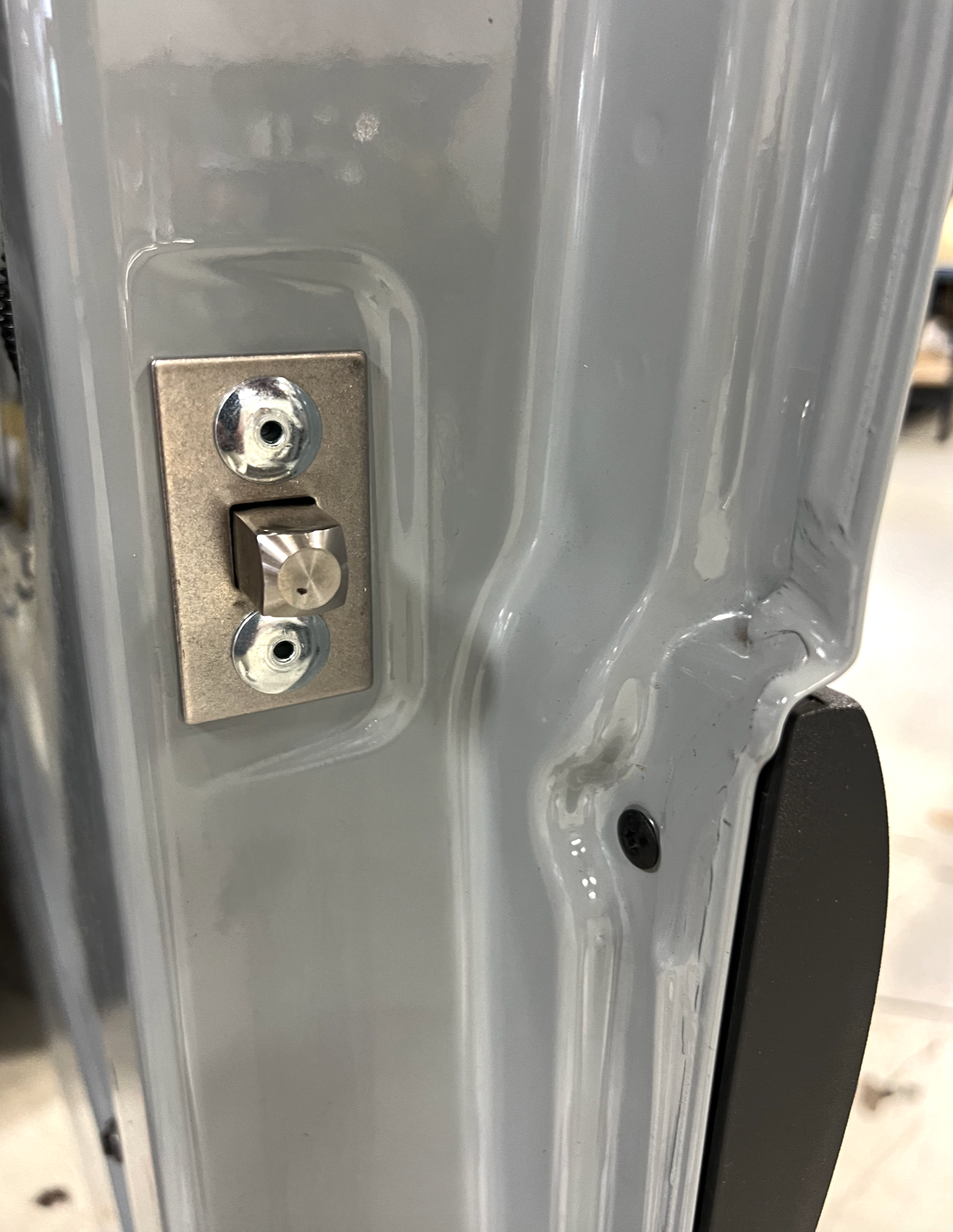

Housing with Bolt

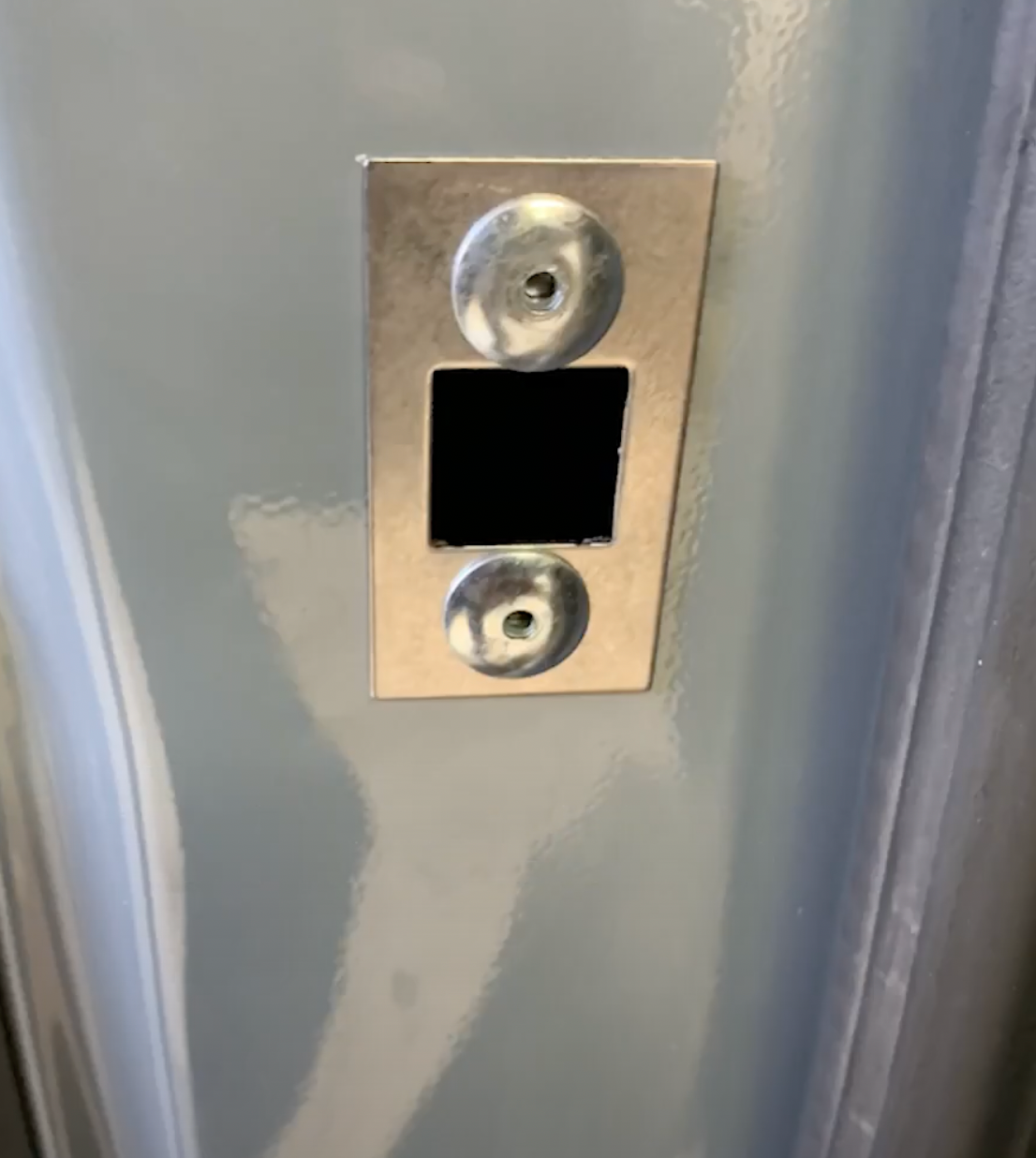

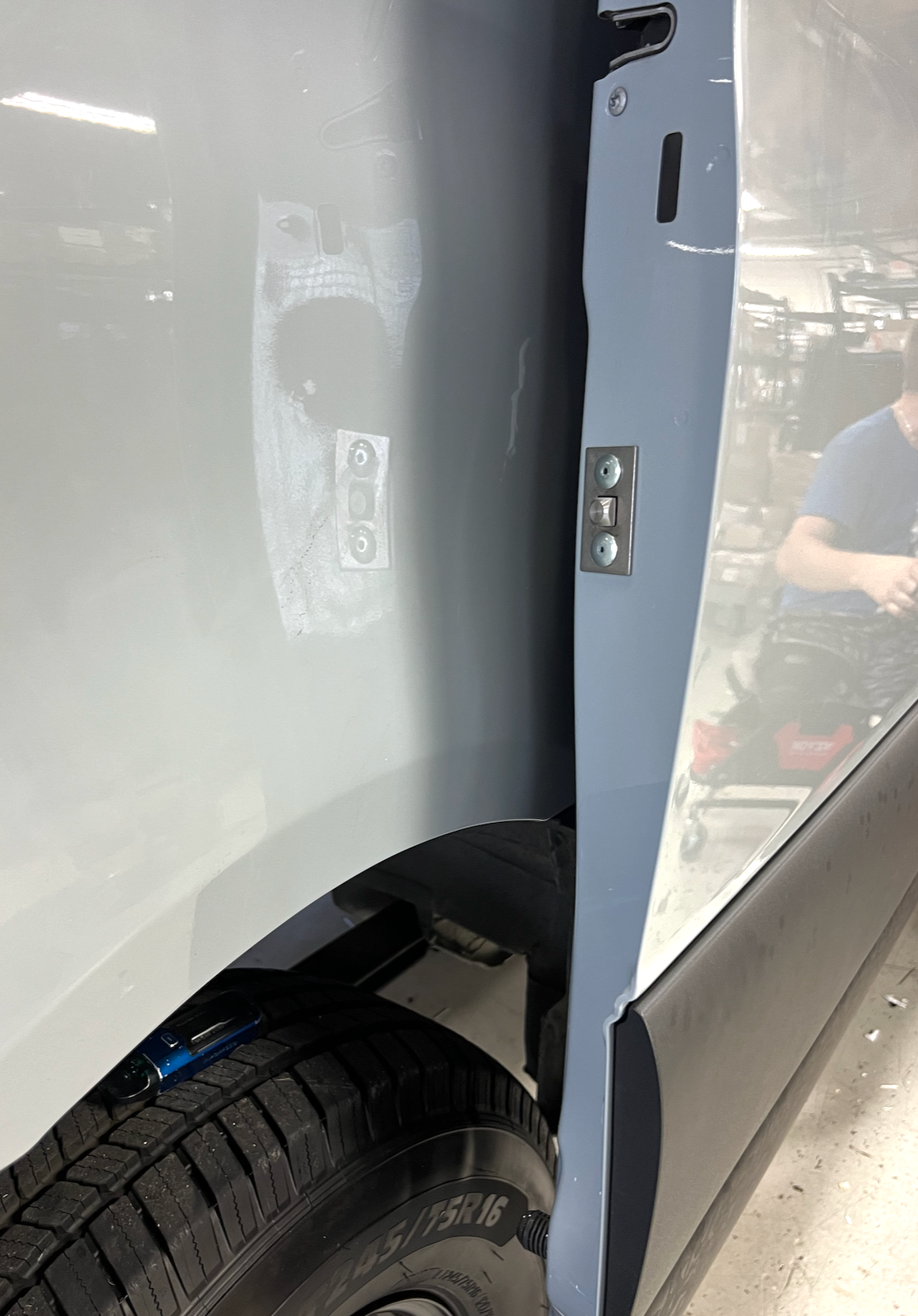

Strike Plate Location
Case Location

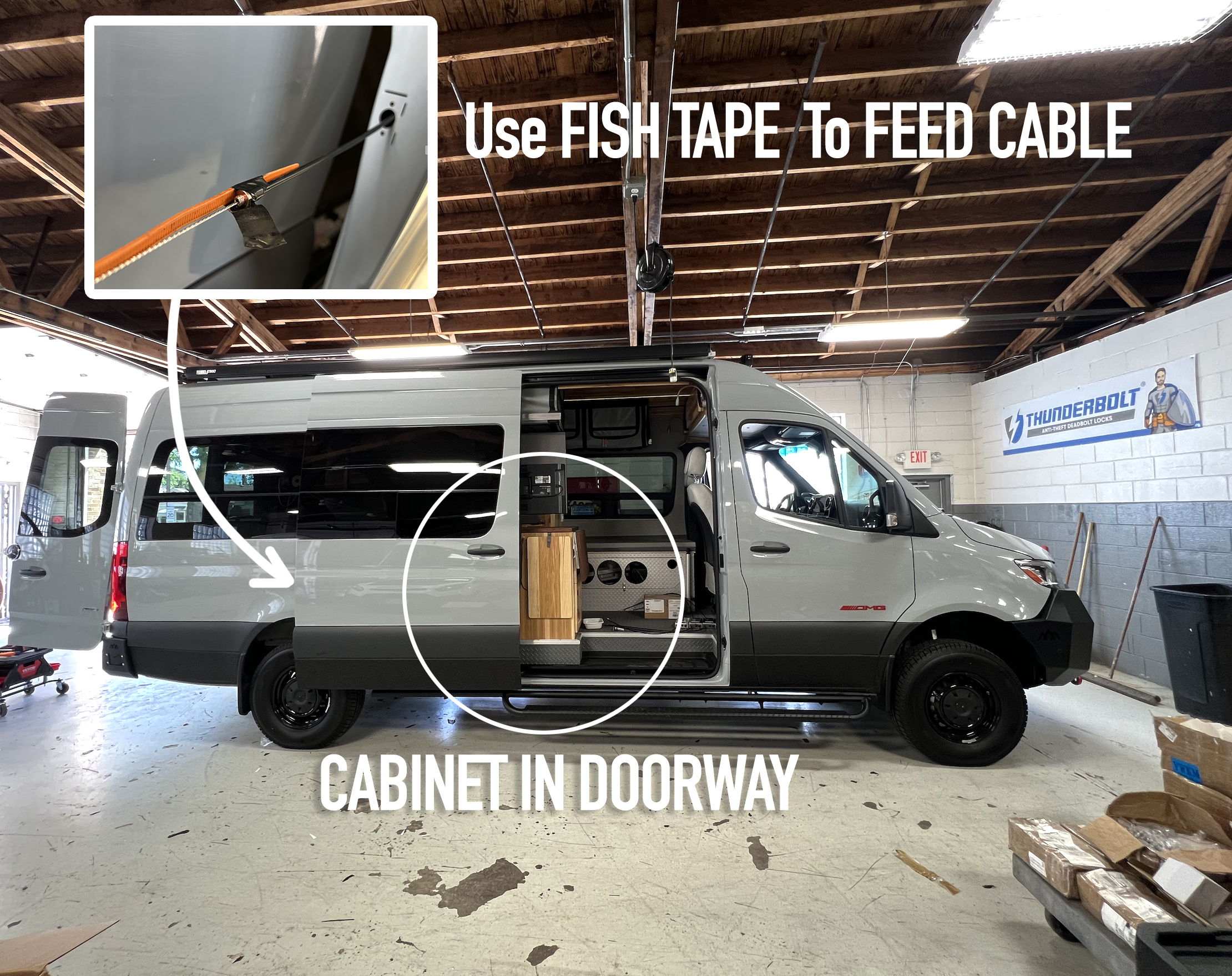

Cabinet Obstruction
Rear Door Panel Removal

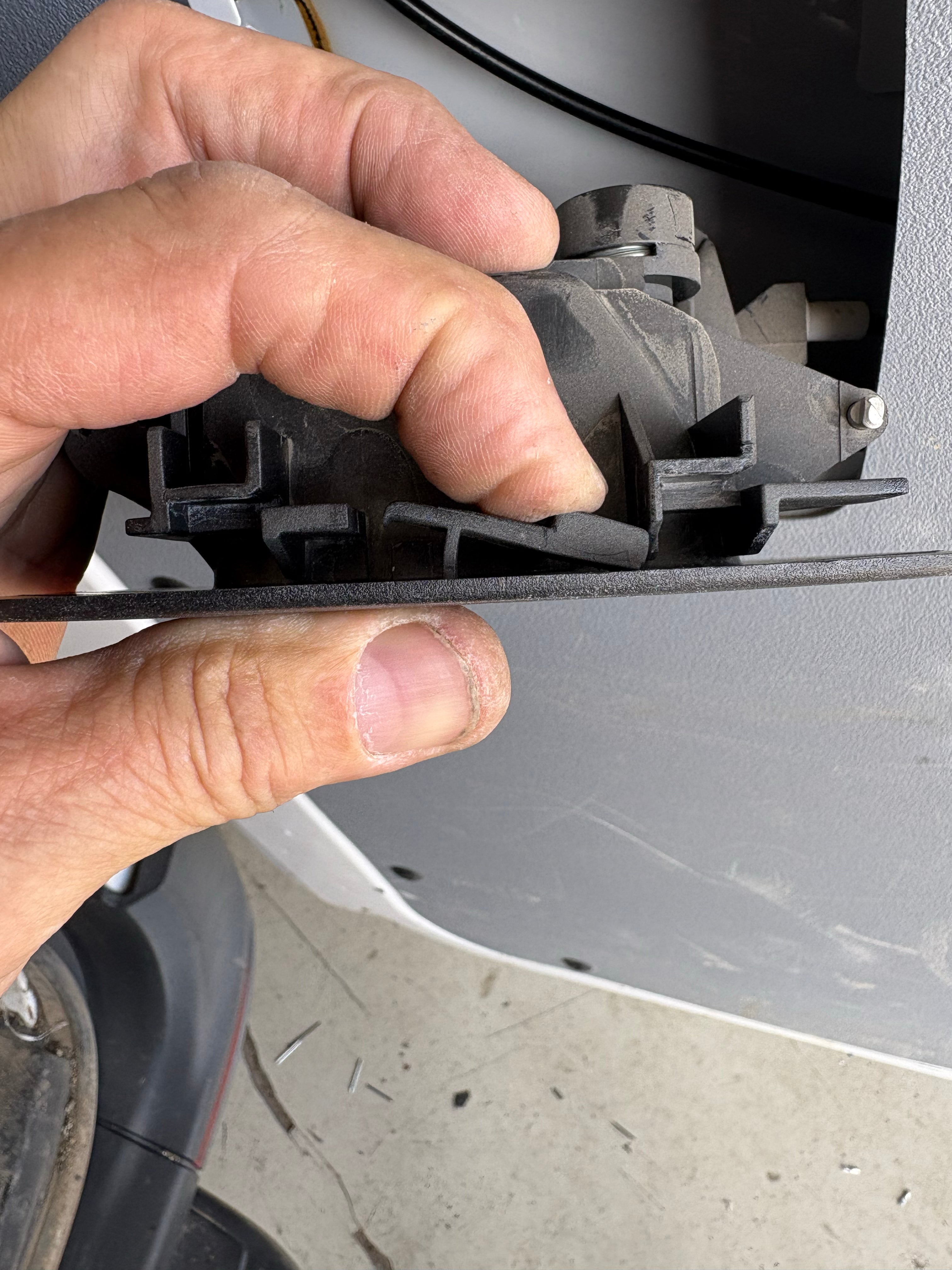

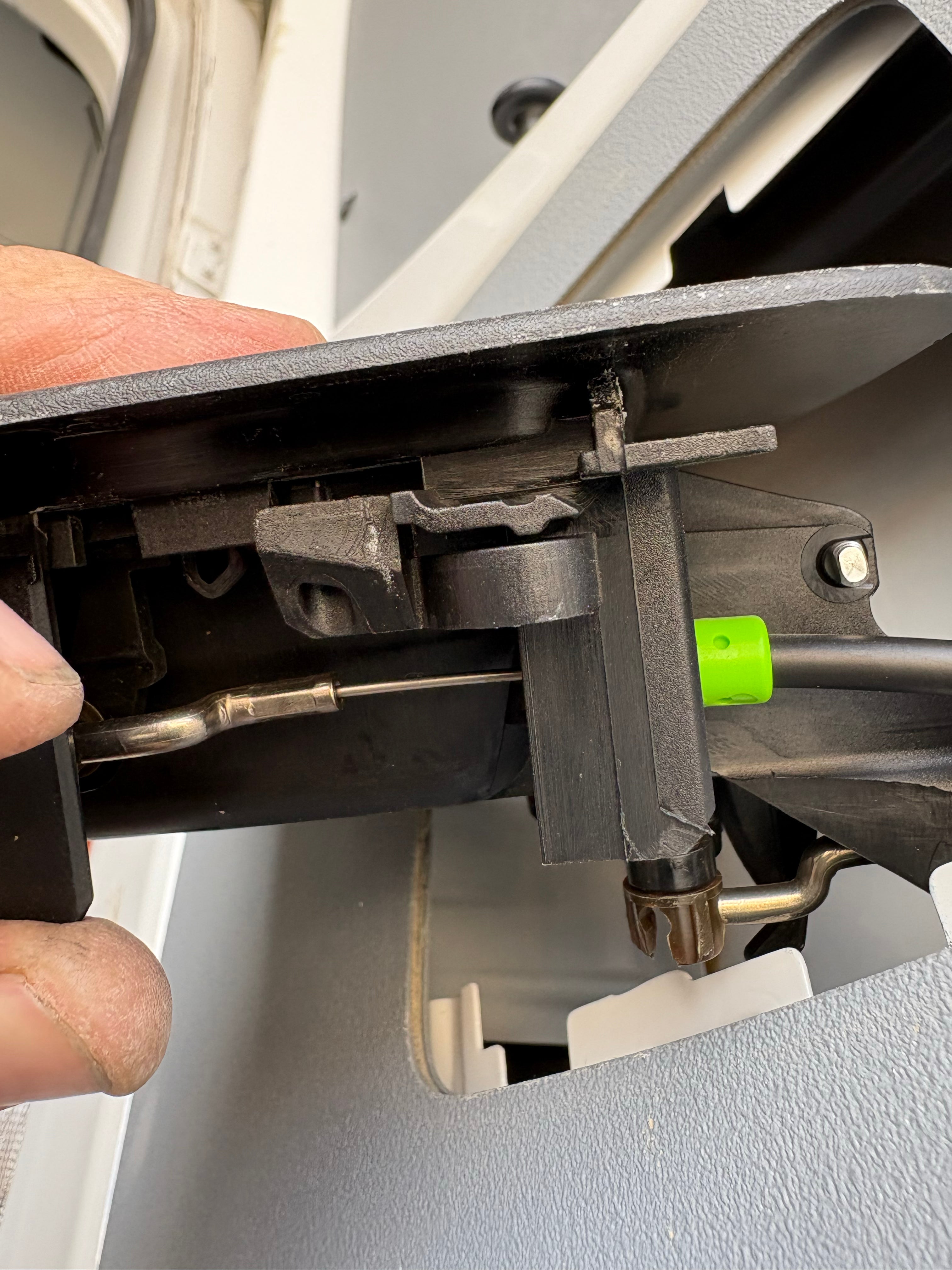

Sprinter Handle Cover
Located Tab at Top
Press Tab
Wiring

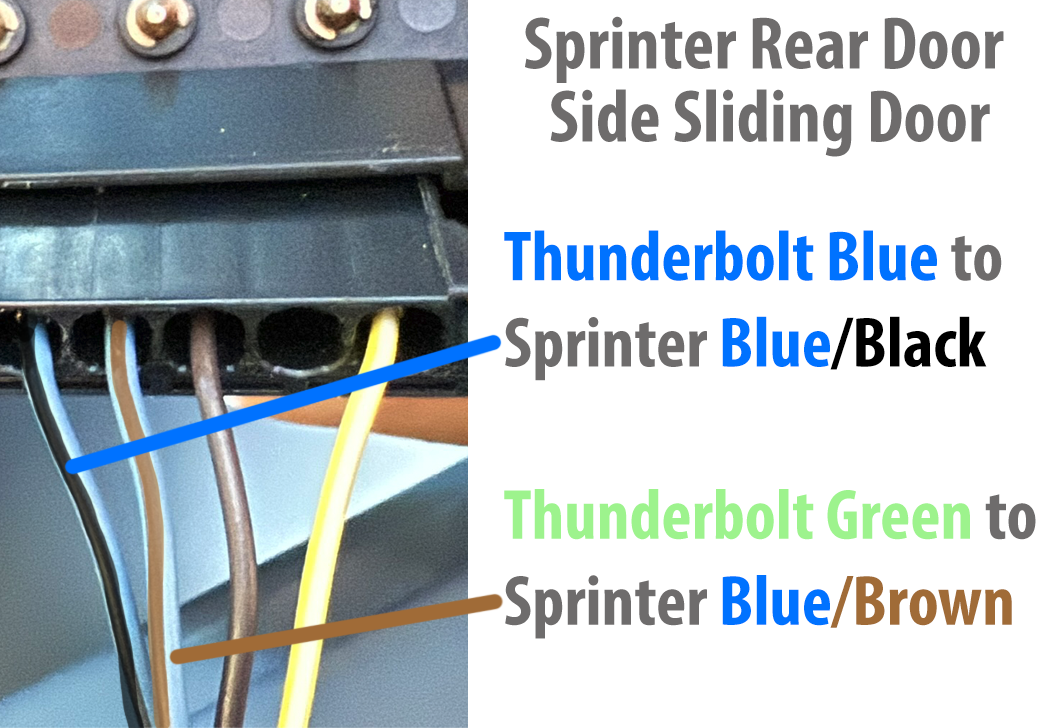

Rear and Sliding Doors
Rear and Sliding Doors

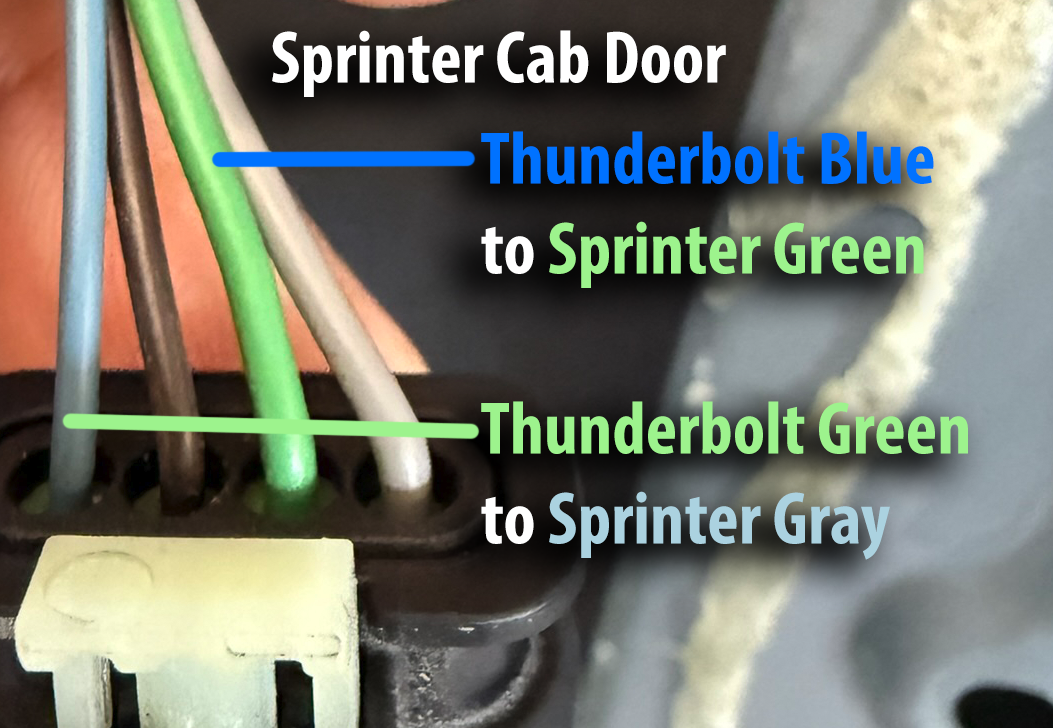

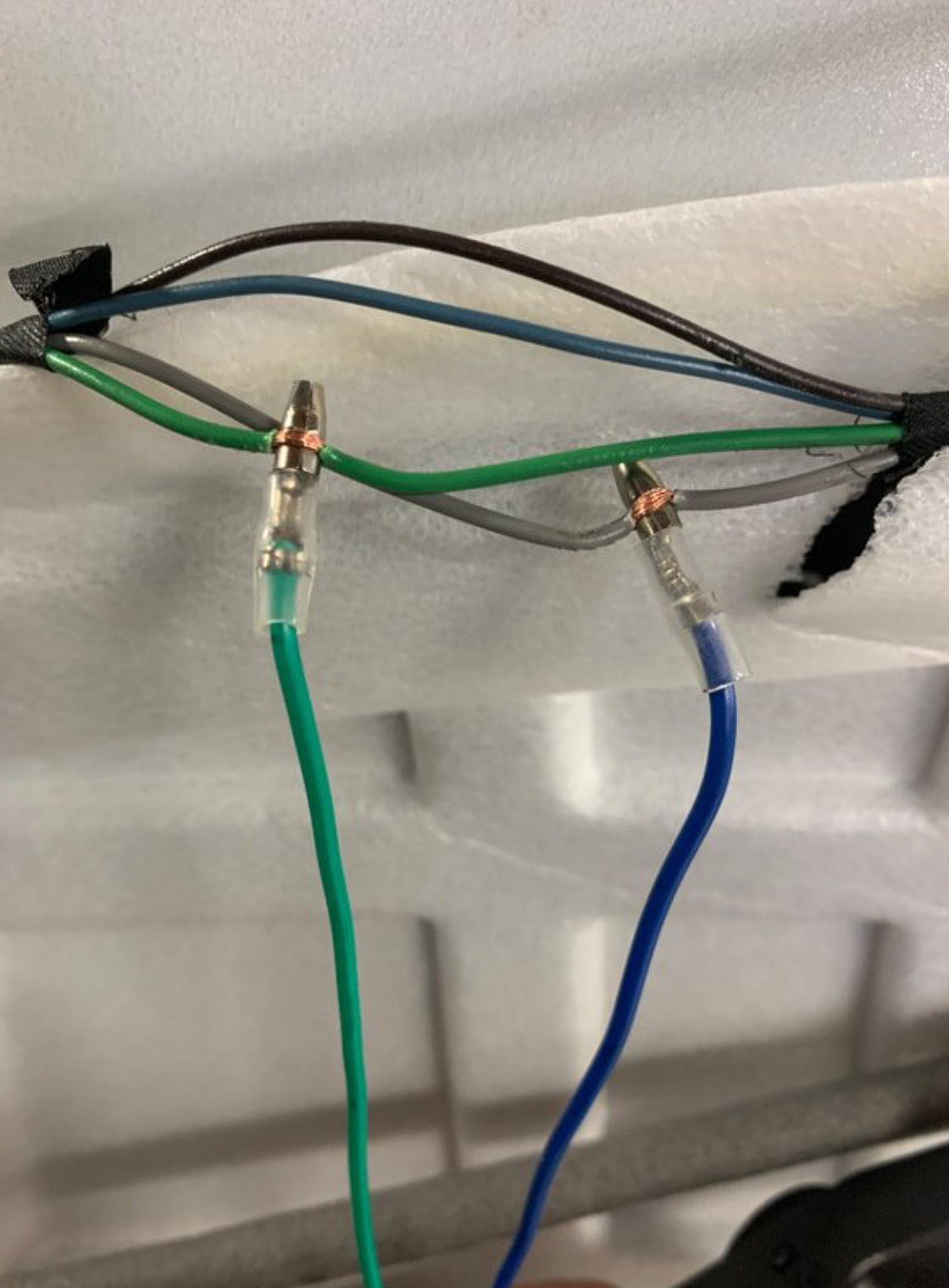

Cab Door
Cab Door
Videos
General Installation
Sprinter Installation
Templates
Thunderbolt offers downloadable templates designed for a wide range of vehicles, primarily based on late-model vans. While these templates are a helpful starting point, they may not perfectly match your specific vehicle. However, the universal design of our locks means they can be installed in various locations on your vehicle, as long as the deadbolt can securely engage with the strike hole.

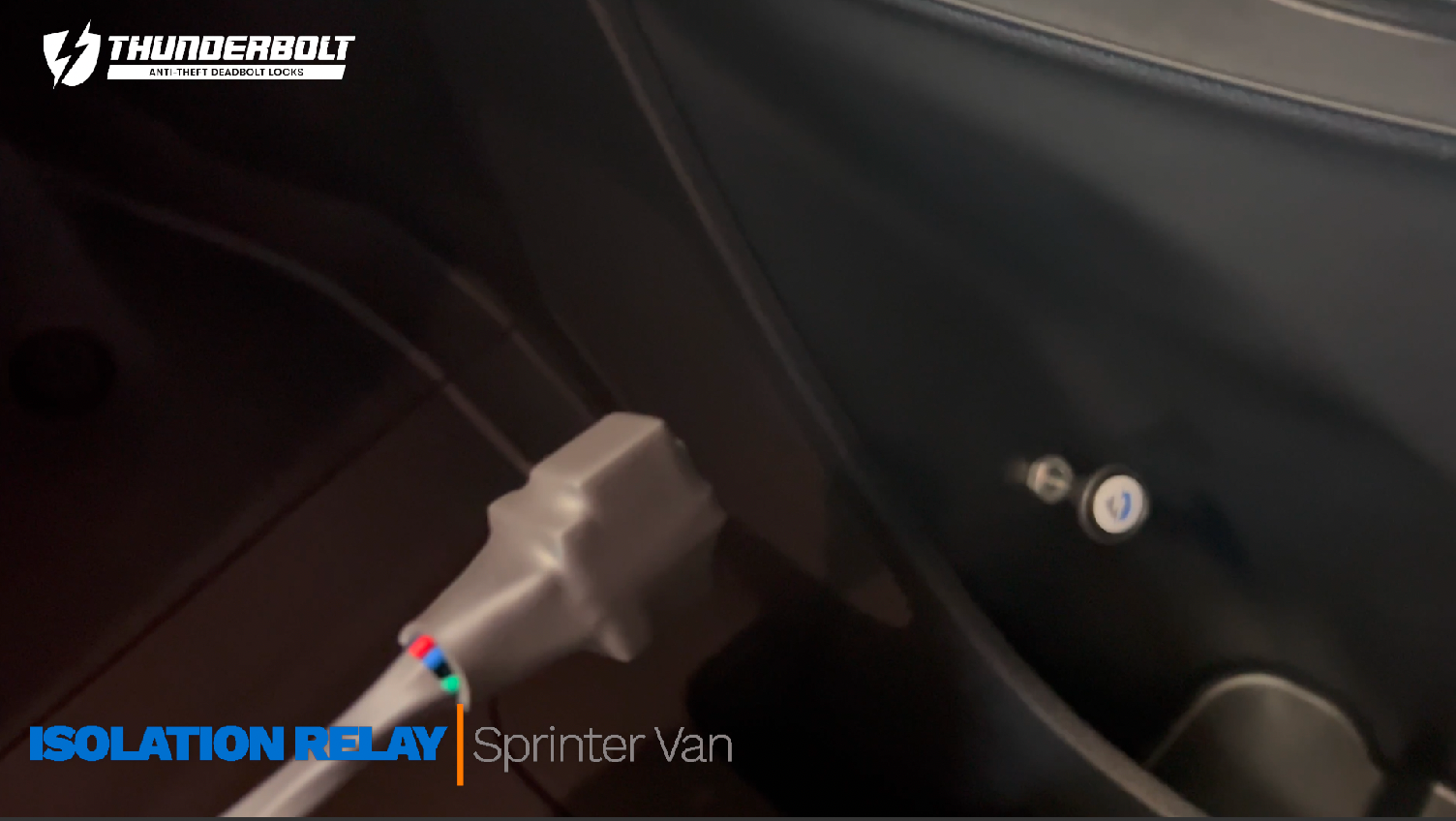

Isolation Relays
Using isolation relays when installing Thunderbolt M1 Locks in the front doors of a Sprinter is indeed a crucial step to ensure proper functionality and prevent issues like "chattering" of the locks. The isolation relays serve to separate the lock's power draw from the vehicle's main lock circuit, minimizing the current draw.
